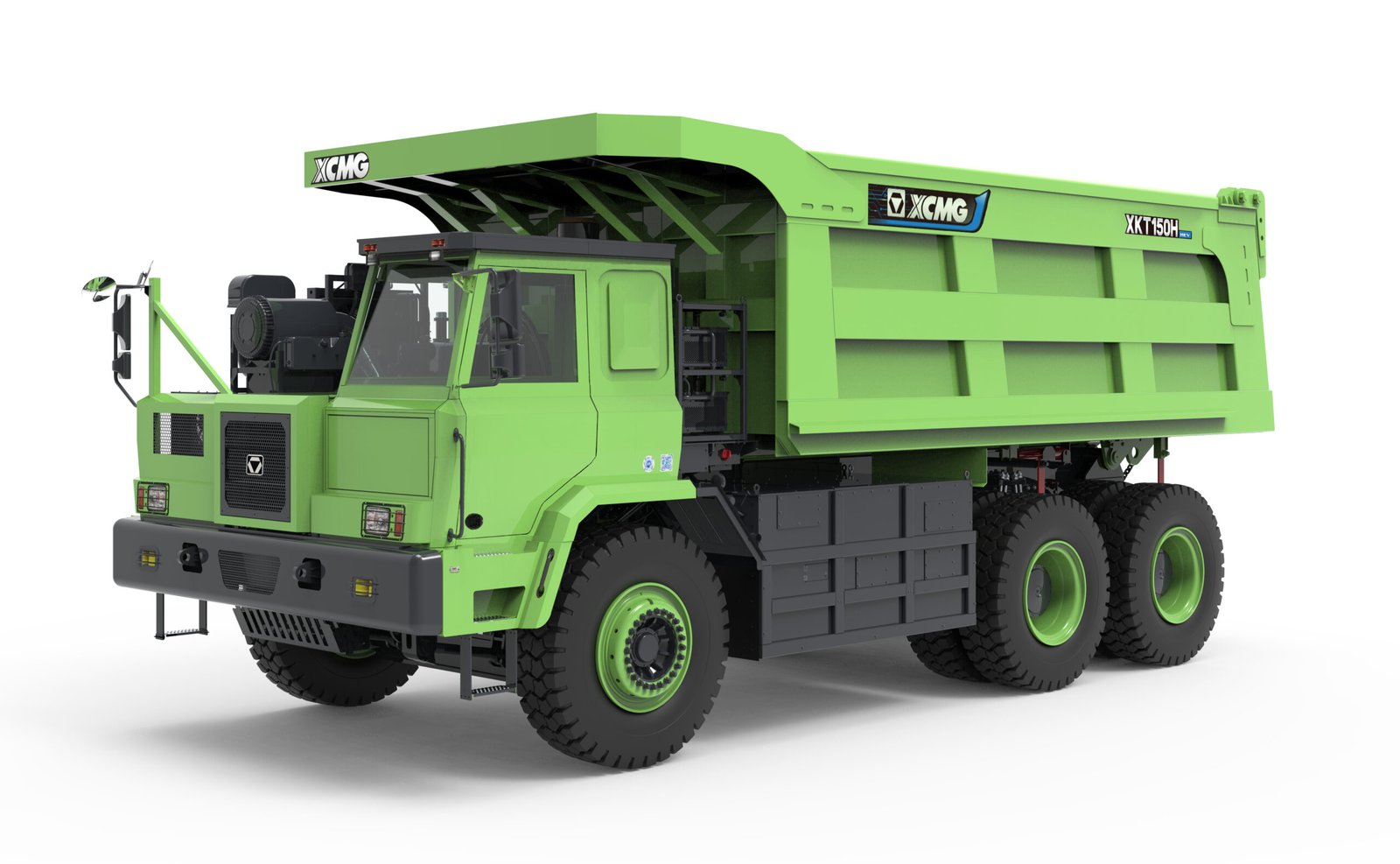

XGH150 Hybrid Extended Range Wide Body Tipper
Expert evaluation:
XGH150 adopts range-extending technology, which saves 15-30% fuel consumption compared with fuel trucks under the same working conditions. Load 90 tons, stacking up to 60 square meters. More advantageous in heavy-duty climbing performance, sustained 8% speed up to 11.2km/h; strong power output, best economic fuel consumption zone, 108/162 kW.h two battery capacity options, has been applied in Tibet, Inner Mongolia, Northwest China and other regions in batch.
Product introduction：
● Electric gearshift, high control precision, fast response, with stable climbing ability in large gradient, maximum climbing degree 34%, maximum speed 43km/h.
● Integrated dual motors, compact structure, simple and reliable; high output torque, up to 22,000Nm, to realize the engine idle stop, more energy-saving, more efficient.
● Adopting unique cab vibration-damping arrangement to reduce driving fatigue, and the rear suspension adopts V-push stabilizing mechanism, which is more reliable.
The whole cargo compartment adopts skeleton structure design, which is more applicable to working conditions, more resistant to smashing, and has a longer service life.
Fully automatic electric drive transmission, adapting to the modification of wire-controlled chassis, more suitable for large-scale driverless transportation.
Parameter configuration:
Tank volume m³ 60
Maximum Climbing % 30
Rated load kg 95000
Motor power kW 600
